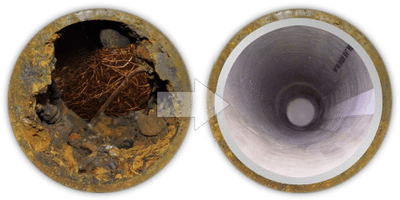

Benefits of Perma-lining:
- We do not have to dig or damage the ground or flooring in your location.
- Unlike excavation involved repairs that can take months, trenchless repairs significantly reduce the time of cast iron repairs.
- 50 Year guarantee by manufacturer.
Understanding the Cured-in-Place Pipe Process
Step 1 - Televise the Pipeline
The pipeline is inspected with a RIDGID camera to find the problem
Step 2 - Clean the Pipeline
The pipeline must be cleaned out with Picote or IMS Robotics products to remove roots, dirt, debris, and any potential objects that could disrupt lining.
Step 3 - Take Measurements
Measurements of the Pipeliner's diameter, depth, and length are taken. The liner and calibration tube is then cut on the job site according to the required measurements.
Step 4 - Measure and Mix Resin
Resin is measured and mixed according to the required measurements.
Step 5 - Pour into Liner
The resin is then poured into the liner and rolled or "wet out" many times to ensure complete impregnation of resin to the liner.
Step 6 - Load into Inverter
Impregnated liner and calibration tube is then loaded into the inverter.
Step 7 - Load into Existing Line
The liner is then inserted into the existing pipe using directional hoses and inversion heads. Then ensure proper insertion.
Step 8 - Invert with Air Pressure
Air pressure then inverts inside out, allowing resin to bond and seal with existing host pipe. The calibration tube balloons to keep the liner in place as it cures.
Step 9 - Ready for Service
Once cured, the calibration tube is removed and the pipe is ready for service.
